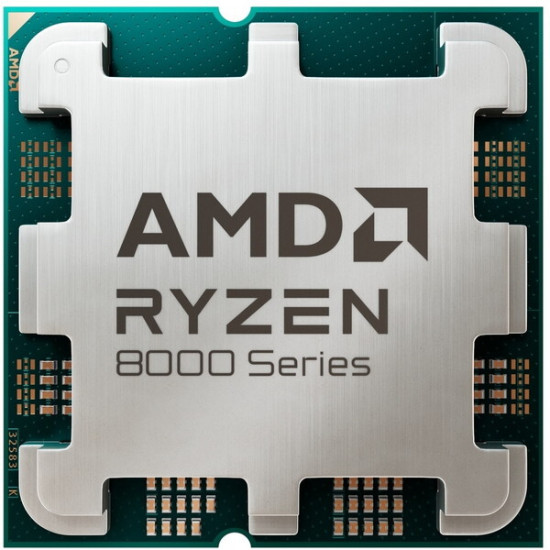

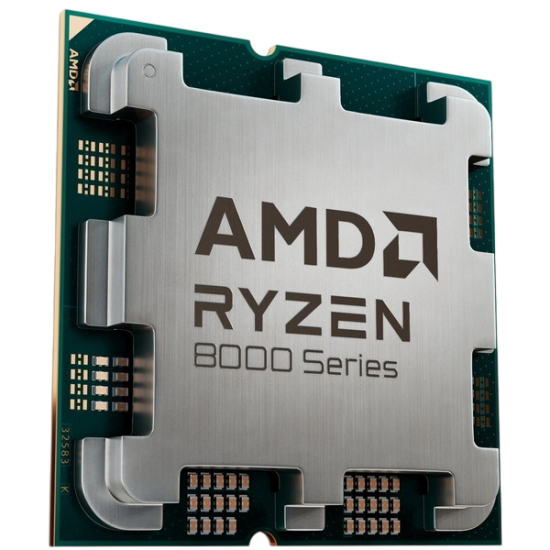

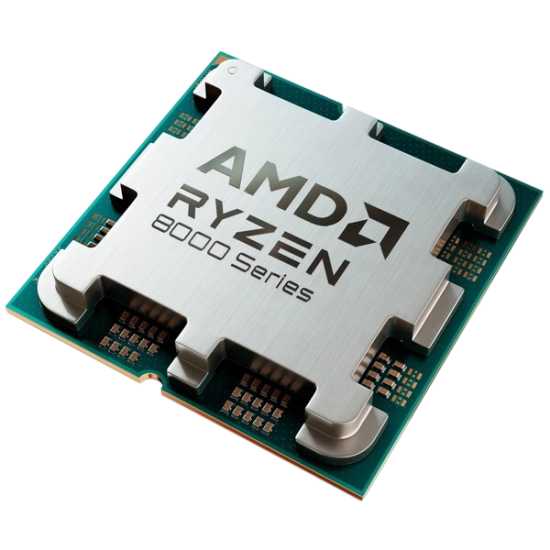

Model: AMD Ryzen 7 8700F (Tray – without cooler)
Part Number: 100-100001590
Series: Ryzen 8000 Series
Codename: Phoenix
Architecture: Zen 4
Launch Date: April 1, 2024
Socket: AM5
Form Factor: Desktop
TDP: 65W (Configurable: 45–65W)
Unlocked for Overclocking: Yes
CPU Specifications:
Cores: 8
Threads: 16
Base Clock: 4.1 GHz
Max Boost Clock: Up to 5.0 GHz
L2 Cache: 8 MB
L3 Cache: 16 MB
Process Technology: TSMC 4nm FinFET
CPU Die Size: 178 mm²
Package Die Count: 1
Overclocking & Performance:
AMD EXPO Technology
Precision Boost 2
Precision Boost Overdrive
Curve Optimizer Support
AMD Ryzen Master Support
Memory Support:
Memory Type: DDR5
Memory Channels: Dual (2)
Max Capacity: 256 GB
Memory Subtype: UDIMM
Max Memory Speed:
2x1R: DDR5-5200
2x2R: DDR5-5200
4x1R: DDR5-3600
4x2R: DDR5-3600
Connectivity:
PCIe Version: PCIe 4.0
PCIe Lanes: 20 total (16 usable for GPU)
NVMe Support: Boot, RAID 0, RAID 1
USB Support:
USB 4 (40 Gbps): 2 ports
USB 3.2 Gen 2 (10 Gbps): 2 ports
USB 2.0 (480 Mbps): 1 port
Graphics:
Integrated GPU: None (Discrete GPU required)
SmartAccess Memory: Supported
AI Capabilities:
AI Engine: AMD Ryzen AI
Performance: Up to 16 TOPS
Compatibility:
Chipsets Supported: A620, B650, B650E, B840, B850, X670, X670E, X870, X870E
Instruction Set: x86-64
Extensions Supported: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX+, SHA, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, SSE4A
Thermal & OS Support:
Max Operating Temp (Tjmax): 95°C
Supported OS:
Windows 11 (64-bit)
Windows 10 (64-bit)
RHEL x86 (64-bit)
Ubuntu x86 (64-bit)
